Specifications
| Displacement @50Hz Max | 0.028 |
| Pressure Ultimate | 15000.00 |
| Power Total Rated @50Hz | 3400.00 |
| Noise / Sound Level | 74.00 db(A) |

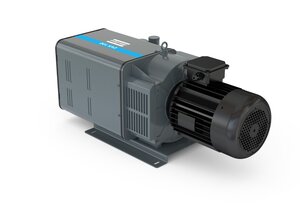

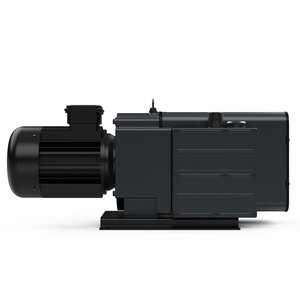

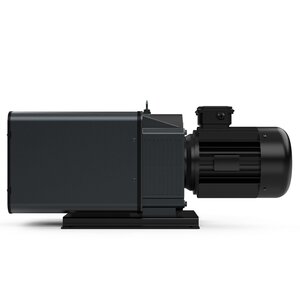

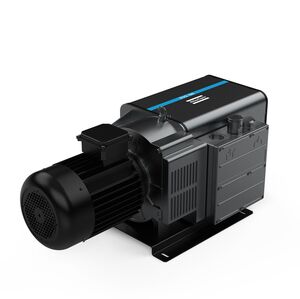

DVS 100 Dry Vane Vacuum Pump, 3.4 kW (@50 Hz), 150 mbar(a), Air Cooling
EUR 5,730.00
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
| Dimension Length | 0.820 |
| Dimension Height | 0.382 |
| Dimension Width | 0.365 |
| Connection Inlet Flange | 1 1/2" BSPP (G) Female |
| Noise / Sound Level | 74.00 db(A) |
| Power Supply Frequency | 50 Hz |
| Weight | 87.00 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection vacuum outlet flange | 1 1/2" BSPP (G) Female |
| Power Supply Voltage | 3Ph 230/400V 50Hz |
Performance Data
| Pressure Ultimate | 15000.00 |
| Power Total Rated @50Hz | 3400.00 |
| Nominal Rotational Speed 50Hz | 1400.00 |
| Displacement @50Hz Max | 0.028 |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Dry Vane Pump |
| Classification Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -20.00 |
| Temperature Ambient Storage Max | 50.00 |
- 6996025405_AIB DVS 5-140_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996023696-DVS-PT-BR-Web.pdf - Brazilian Portuguese - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- Brochure_DZS-serie 6996023608-DVS_NL.pdf - Dutch - Sales Leaflet
- 6996024720_AIB_DVS_5-140_EN.pdf - English - AIB Instruction Manual
- DVS 100 3002615679.pdf - English - Dimensional Drawing
- DVS 100 3002615685.pdf - English - Dimensional Drawing
- DVS 100 US 3002615691.pdf - English - Dimensional Drawing
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996023693-DVS-EN-Web.pdf - English - Sales Leaflet
- 6996025403_AIB DVS 5-140_FR.pdf - French - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996023603-DVS Brochure-FR-Web.pdf - French - Sales Leaflet
- 6996025401_AIB DVS 5-140_DE.pdf - German - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996023604-DVS-DE-Web.pdf - German - Sales Leaflet
- 6996025404_AIB DVS 5-140_IT.pdf - Italian - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996023607-DVS-IT-Web.pdf - Italian - Sales Leaflet
- 6996023614-DVS-PL.pdf - Polish - Sales Leaflet
- 6996025406_AIB DVS 5-140_RU.pdf - Russian - AIB Instruction Manual
- 6996024720_AIB DVS 5-140_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996025402_AIB DVS 5-140_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023605-DVS-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023638-DVS-TR-Web.pdf - Turkish - Sales Leaflet
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Shock mounts (DVS 60-140) | 0017000002 | EUR 28.10 | |
| Vac. filter IF 1 1/2'' (paper) | 0017000014 | EUR 514.00 | |
| Vac. filter IF 1 1/2'' (poliester) | 0017000015 | EUR 783.00 | |
| Inlet hose fit. IHF (DVS 100-140) | 0017000030 | EUR 126.00 | |
| Non-ret. valve NRV 1 1/2'' | 0017000038 | EUR 273.00 |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Filter Kit DVS 60, 80, 100, 140 | 3002628000 | EUR 105.00 |
