Specifications
| Displacement @50Hz Max | 0.140 |
| Displacement @60Hz Max | 0.168 |
| Power Total Rated @50Hz | 2200.00 |
| Noise / Sound Level | 67.00 db(A) |

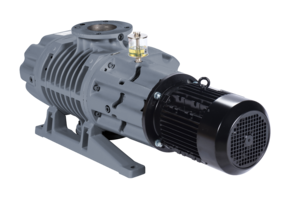

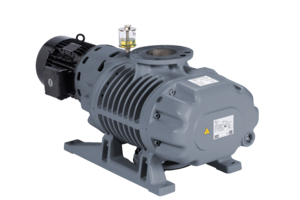

DRB 500 Mechanical Booster Pump, 2.2 kW (@50 Hz), 80 mbar(dp), Air Cooling
Mechanical Booster pumps
DRB 250-2000
Based on the simple Roots principle, our mechanical booster pumps remain the favorite pumps for applications where high pumping speeds are required for pressures in the region of 0.01 to 50 mbar. This pump must always be backed by another pump, which can deliver against a high-pressure differential to atmospheric pressure. Operating at relatively low pressures, the mechanical booster pump is not exposed to the same concentrations of corrosive process media as is the backing pump, which makes it highly reliable.
Features you can rely on:
Pumping speed DRB: 250-2000 mbar(a)
Ultimate pressure: 0.01 mbara
• Available with multiple motor drives and use air- cooled, flange-mounted, standard three-phase motor
• Can be used either vertically or horizontally with the option to change the position when required
• Complies with the premium energy efficiency class IE3. This means lower power consumption and carbon emissions
General Product Information
| Dimension Length | 0.840 |
| Dimension Height | 0.340 |
| Dimension Width | 0.390 |
| Connection Inlet Flange | DN 63 ISO-K |
| Noise / Sound Level | 67.00 db(A) |
| Power Supply Frequency |
50 Hz
50 Hz |
| Weight | 142.00 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection vacuum outlet flange | DN 63 ISO-K |
| Power Supply Voltage | 3Ph 200-240V, 380-415V/200-220V, 380-460V 50/60Hz |
Lubricants
| Default Oil Type | VG 100 |
Performance Data
| Nominal rotational speed | 50.00 |
| Power Total Rated | 2200.00 |
| Power Total Rated @50Hz | 2200.00 |
| Pressure Differential Max @50Hz | 8000.00 |
| Pressure Differential Max @60Hz | 8000.00 |
| Displacement @50Hz Max | 0.140 |
| Displacement @60Hz Max | 0.168 |
Classification
| Classification High / Medium / Rough Vacuum pump | Medium Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Mechanical Booster Pump |
| Classification Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
Operation Conditions - Limitations
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
| Oil Capacity Max | 1.900 × 10⁻³ |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
| Temperature Ambient Storage Min | -20.00 |
| Temperature Ambient Storage Max | 60.00 |
